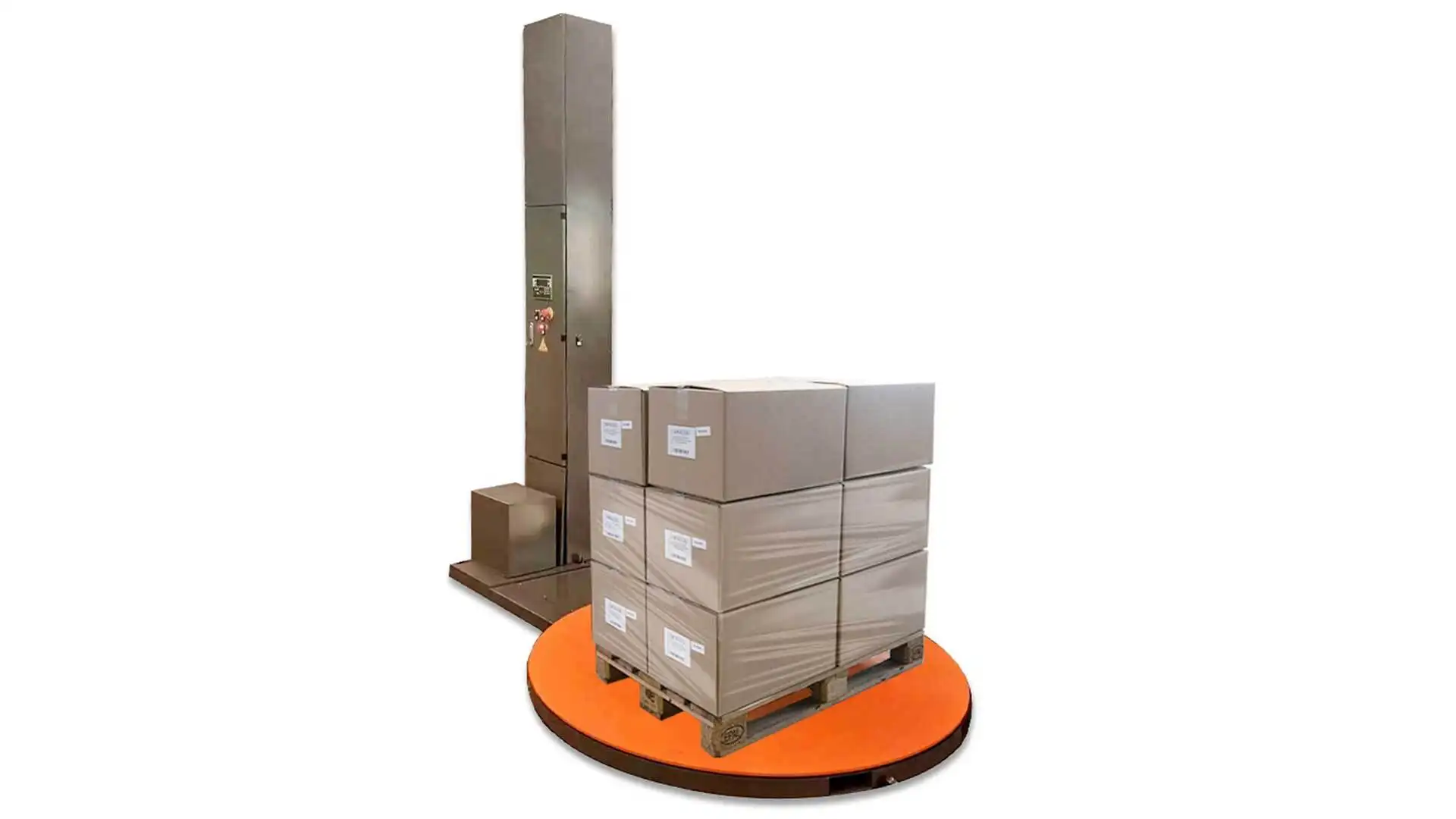

YJNPACK Palette automatique Stretch Film Wrap Pallet Wrapper Pallet Emballage Machine
Pallet Wrapping Machine is an automated equipment that is mainly used to evenly wrap and fix the goods on the goods so that the goods on the pallet can be placed closely together. Through the continuous wrapping of stretch film, 5 boxes or more of goods can be fixed, ensuring the safety of goods during transportation and storage, while improving work efficiency.
特徴:
*Suitable for heavy-duty industrial design
*Emergency shut-off function, programmable winding coil
*Adopt a laminated film releasing device to save film usage
*Independent PLC control system reduces wear of variable frequency motors
*Two wrap modes – Select spiral up and down or spiral up only.
*Convenient photo eye – Allows operator to walk away
Reasons To Choose Pallet Wrapping Machine
1. Protect the goods: Make the shipping package tightly wrapped by stretch film and effectively prevent it from being
damaged during transportation.
2. Cost Savings: Reduces material/film costs, labor costs, and time per load compared to manual packaging.
3. Improve efficiency: The automated packaging process can greatly improve work efficiency, with a Convenient photo eye that allows
operators to walk away and reduce manual intervention.
Maombi:
Logistics and Warehousing Industry/Manufacturing/Retail and Distribution/
Product Notes:
1. This machine can only be used for packaging in fixed locations
2. It can quickly release and automatically adjust the tension, with a maximum pre-stretching of 250%.
3. Simple model, unable to perform more intelligent operations
4. Traditional button settings and operations
5. It uses a DC motor, which has high performance and low maintenance costs.
About Pallet Wrapping Machine Parameters
| Kipengee | Pallet Wrapping Machine WFA240165 |
Type
| Full-automatic |
Udhamini
| 1-mwaka |
| Turntable Diameter | φ1650mm |
| Packing Height | 2400mm |
| Wrapping Specification | 3160x1710x1020mm（L×W×H) |
| Turntable Heigh | 78mm |
| Packing Height | 2400mm |
| Turntable Load-bearing | less than 2000kg |
| Packaging Materials | LLDPE stretch film |
| Film Thickness | 17~35μm |
| Film Width | 500mm |
| Film Inner Core Size | 76.2mm |
| Maximum Outer Diameter of Film | 240mm |
| Vigezo | Power:1.5kw Voltage: Single phase 220v Speed:0~12 r/min Weight:G.W:762Kgs，N.W:580Kgs |
