YJNPACK Pallet Pallet Film Wrap Pallet Wrapper Machine

Pallet Wrapping Machine is an automated equipment that is mainly used to evenly wrap and fix the goods on the goods so that the goods on the pallet can be placed closely together. Through the continuous wrapping of stretch film, 5 boxes or more of goods can be fixed, ensuring the safety of goods during transportation and storage, while improving work efficiency.



Функции:

*Suitable for heavy-duty industrial design

*Emergency shut-off function, programmable winding coil

*Adopt a laminated film releasing device to save film usage

*Independent PLC control system reduces wear of variable frequency motors

*Two wrap modes – Select spiral up and down or spiral up only.

*Convenient photo eye – Allows operator to walk away

    UPS...!

    No hay datos de producto.

    ir a la página de inicio

    Reasons To Choose Pallet Wrapping Machine



    1. 1. Protect the goods: Make the shipping package tightly wrapped by stretch film and effectively prevent it from being

    2. damaged during transportation.



    2. Cost Savings: Reduces material/film costs, labor costs, and time per load compared to manual packaging.



    3. Improve efficiency: The automated packaging process can greatly improve work efficiency, with a Convenient photo eye that allows

    operators to walk away and reduce manual intervention.



    Applicationem:



    Logistics and Warehousing Industry/Manufacturing/Retail and Distribution/



    Product Notes:



    1. This machine can only be used for packaging in fixed locations

    2. It can quickly release and automatically adjust the tension, with a maximum pre-stretching of 250%.

    3. Simple model, unable to perform more intelligent operations

    4. Traditional button settings and operations

    5. It uses a DC motor, which has high performance and low maintenance costs.



    About Pallet Wrapping Machine Parameters



    Item Pallet Wrapping Machine WFA240165
    Type
    Full-automatic
    Warranty
    1-year
    Turntable Diameter φ1650mm
    Packing Height 2400mm
    Wrapping Specification 3160x1710x1020mm(L×W×H)
    Turntable Heigh 78mm
    Packing Height 2400mm
    Turntable Load-bearing less than 2000kg
    Packaging Materials LLDPE stretch film
    Film Thickness 17~35μm
    Film Width 500mm
    Film Inner Core Size 76.2mm
    Maximum Outer Diameter of Film 240mm
    Parameters

    Power:1.5kw

    Voltage: Single phase 220v

    Speed:0~12 r/min

    Weight:G.W:762Kgs,N.W:580Kgs

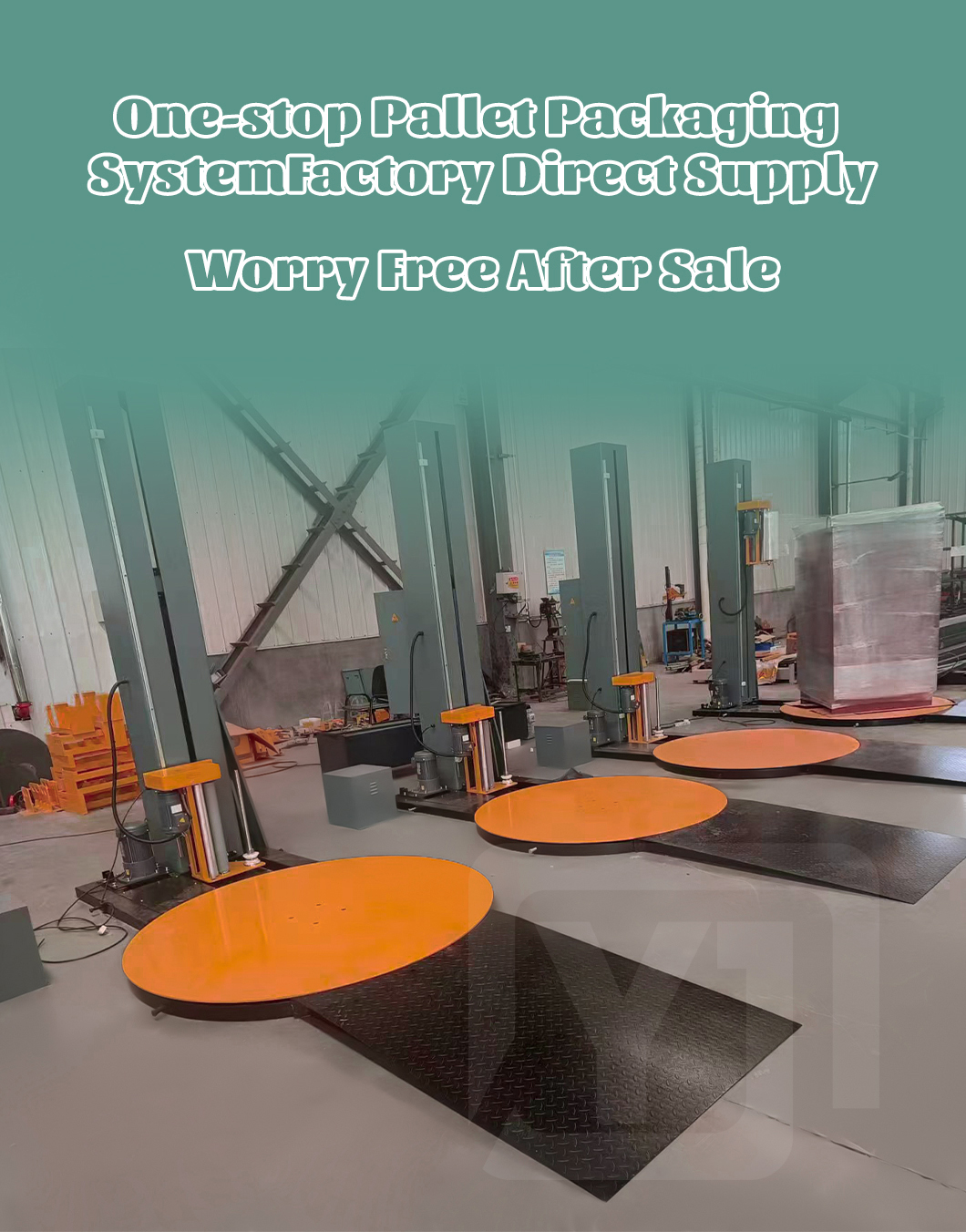

    YJNPACK Pallet Pallet Film Wrap Pallet Wrapper Machine 7
