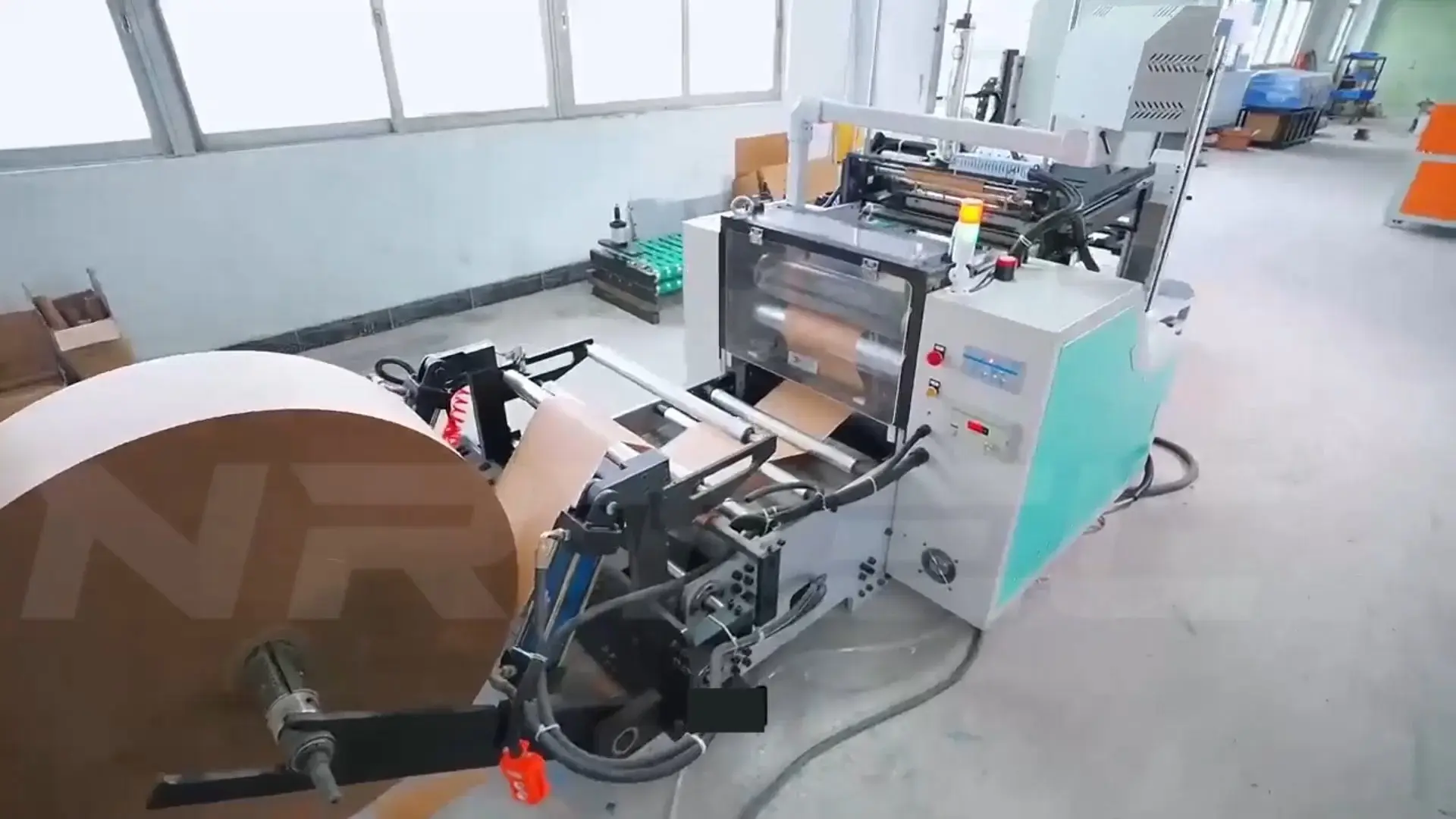

Full Automatic Kraft Honeycomb Paper Making Machine Features
The fully automatic honeycomb paper making machine is equipped with an automatic correction system to ensure that the edges of the
finished product are neat. It mainly produces kraft paper into 3D honeycomb paper. In this process, web making and winding can be
completed at the same time.
Moreover, this machine has unwinding tension key and rewinding tension key control buttons. The paper tension is mainly controlled by
magnetic powder brake and clutch, with fast dynamic response and stable running speed. Using a cylinder to control the lifting and lowering
of the cutting die ensures reliable and stable operation and saves costs.
Full Automatic Kraft Honeycomb Paper Making Machine Parameters
| Machine Size | L*W*H (3600*2300*1800) |
| Power Supply | 220V/380V |
| Reference Weight Of Kraft Paper | 70-90gsm |
| Maximum Unwinding Diameter | 1200mm |
| Maximum Width Of Paper | 500mm |
| Maximum Winding Speed | 135m/min |
| Weight Approx | 1800kg |
Technical support and service
* After-sales service: 3-to-1 after-sales service docking, immediate response
* Factory advantages: Direct factory wholesale delivery, unique factory wholesale price
* Unique customization: Have our own R&D engineers, accept customized logo and brand color
* 1-year warranty: Free replacement of common spare parts during the warranty period. If the problem cannot be guided online, we will arrange for a dedicated person to provide on-site guidance
